Ürün ayrıntıları:
|
| Kayış kalınlığı: | 0,4-1,2 mm | Kayış genişliği: | 9-32mm |
|---|---|---|---|
| Kayış Çekirdek Malzemesi: | Kağıt/Plastik/Alüminyum | İnvertör: | INVT |
| Kemer malzemesi: | PET pul malzemesi/PET geri dönüşüm malzemesi | Üretim kapasitesi: | 300-320kgs/saat |
| Menşei: | Çin | Kontrol Sistemi: | PLC kontrolü |
| Vurgulamak: | 9-32mm automatic PET strap machine,single-screw PET production line,GUOMAO reducer PET strap equipment |
||

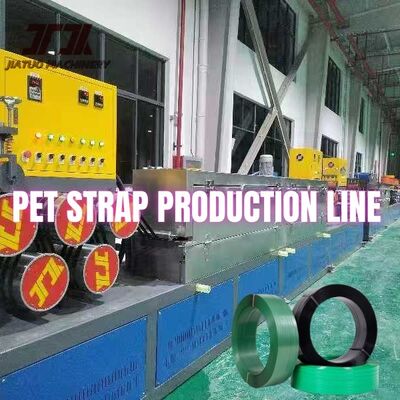

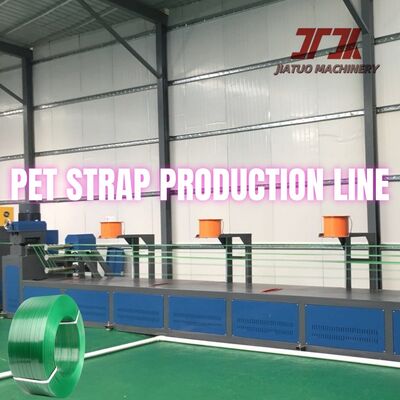

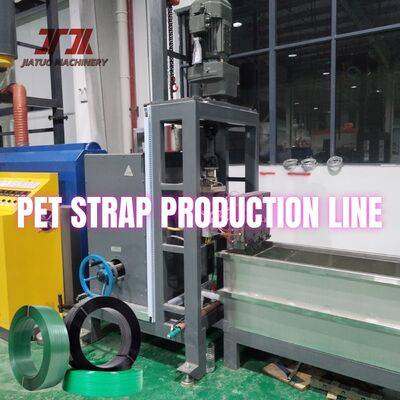

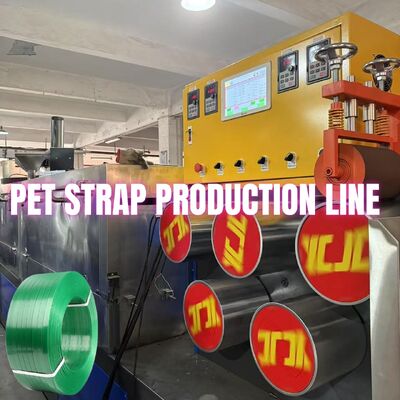

9-32mm Automatic Single-screw Pet Strip Production Line With GUOMAO Reducer
Application of PET strapping
Widely used in ceramic,floor board ,floor tile,paper making ,wooden product ,spinning product, cotton ,nonferrous metal ,chemical product ,electric power or cable,and tray band of goods, as a newly rising product.
Parameter type of JIATUO PET strap making line
| Model of machine | Total power | Running power | Capacity |
| PET1-2 90MM | 200KW | 110-120KW | 150-180K/H |
| PET1-3 110MM | 250KW | 150-160KW | 300-330KG/H |
| PET1-4 125MM | 300KW | 180-190KW | 400-450KG/H |
Technical specification of PET 2 straps output making machine
| 1 | Materials | PET CRUSHED MATETIAL / bottle flakes material /virgin material |
| 2 | Product | PET strap (1 mould for 2straps) |
| 3 | Capacity | 220-250kg/H |
| 4 | Total install power | 100kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 9mm-32 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (50m) ×W (4m) ×H (8m) |
| 9 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches | Fotek |
| 13 | Reducer | GUOMAO |
![]()
Feature of PET strap production line
To prevent splitting problem on strapping.
To prevent rust problem on product.
To prevent scratches on product.
To hold product tightly.
To be managed easier than steel strapping.
Higher productivity than steel strapping in fully automatic line .
FAQ
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
![]()
