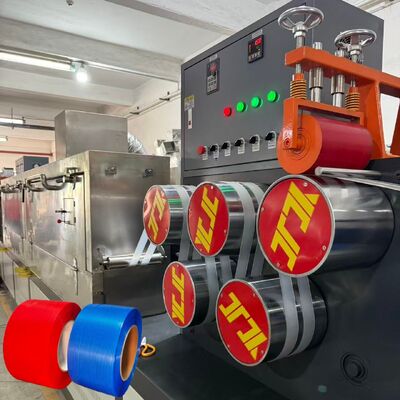

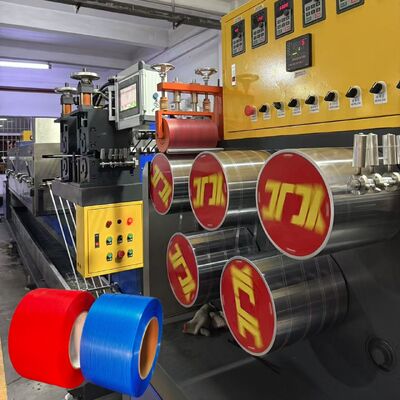

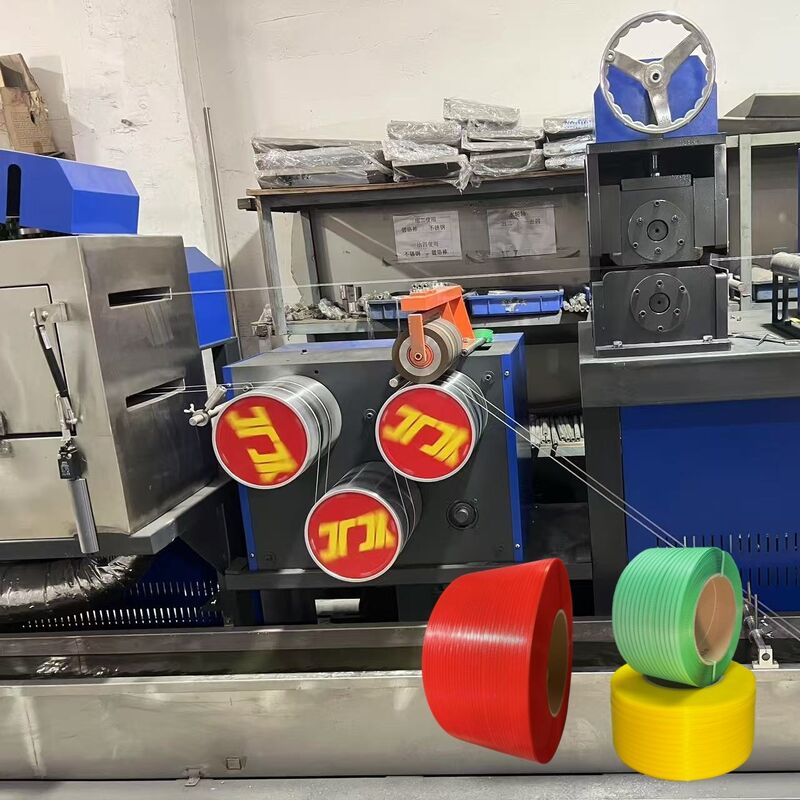

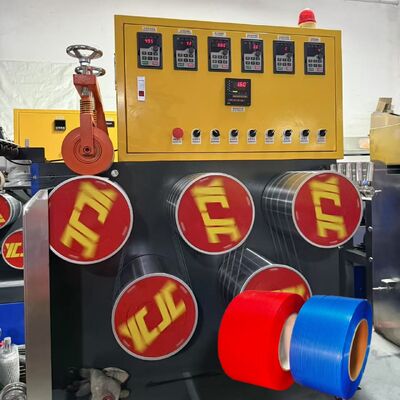

Automatic Multifunctional plastic PP Strap Making Machine for Packaging Band
Main description of PPStrap Band/pp strapping band making machine/pet strap manufacturing machine/pp strap production line
Eco-Friendly Raw Material
Made from 100% recycled polypropylene (PP) pellets, fully recyclable and environmentally sustainable.
Comprehensive Specifications
Our PP strapping is available in widths of 5–19mm and thicknesses of 0.3–1.2mm, ideal for both automatic and manual packaging operations.
Premium Core Configuration
The extruder is fitted with a 38CrMoALA alloy screw and automatic feeding system, designed for consistent, high-quality strapping production.
Intelligent & High-Efficiency
Equipped with variable-frequency motors and intelligent temperature control, the line ensures stable, reliable performance while saving energy.
Technical Parameters of JIATUO PP 4straps output making machine
|
1
|
Materials
|
Polypropylene PP raw material pellets, recycled pellets.
|
|
2
|
Product
|
PP strap (1 mould for 2 straps)
|
|
3
|
Capacity
|
230-260kg/h
|
|
4
|
Total install power
|
100kw, (actual power consumption is 40-50%)
|
|
5
|
Strap width
|
5mm-19 mm
|
|
6
|
Thickness
|
0.4 mm-1.2 mm
|
|
7
|
Manpower
|
2person/shift
|
|
8
|
Workshop required
|
L (35m) ×W (2m) ×H (4m)
|
|
9
|
Power source
|
380V, 50Hz, 3Phase (according to customer requirement)
|
|
10
|
Electric components
|
Schneider
|
|
11
|
Inverter
|
INVT
|
|
12
|
Switches
|
Fotek
|
|
13
|
Motor power
|
GUGAO
|
Feature of PP strap production line
- Flexible Raw Material Compatibility: Use 100% recycled material, mixed new & recycled materials, or add calcium carbonate as required to cut costs and boost profits.:
- Optimized Machine Appearance: Sleek, premium-looking, and highly durable.
- High-Precision Die Components: Stable product forming with width & thickness tolerance far below national standards; exclusive screen changer slashes screen changing time.
- High-Quality Precision Screw: Brand-name parts with unique parameter design, featuring high extrusion capacity, excellent plasticization, high hardness & wear resistance.
Parts of JIATUO PP strap production line
Automatic screen changer
Extrusion die head
Precision molds manufactured by large CNC centers
Automatic winder
For our winding machine, there have fully-automatic and semi-automatic to choose. you can choose it as you need!
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
