Ürün ayrıntıları:
|
| Plastik İşlenmiş: | PET | Vida çapı (mm): | 110mm |
|---|---|---|---|
| Üretim kapasitesi: | 225-250kgs/H özelleştirilebilir | Garanti: | 1 yıl |
| Ekstrüde edilmiş kayış sayısı: | 3 | Uygulama kapsamı: | Tuğla bahçesi, metal, çelik, alüminyum, bira fabrikası |
| ekran değiştirici: | çift silindirli / tek silindirli | Kalınlık aralığı: | 0,4-1,2 mm |
| Genişlik aralığı: | 9-32mm | Uygulanabilir hammaddeler: | şişe pul malzemesi, %100 kırık malzeme |
| Vurgulamak: | PET strapping band machine with automatic winder,high-speed PET strap making machine,150m/min PET strapping production line |
||

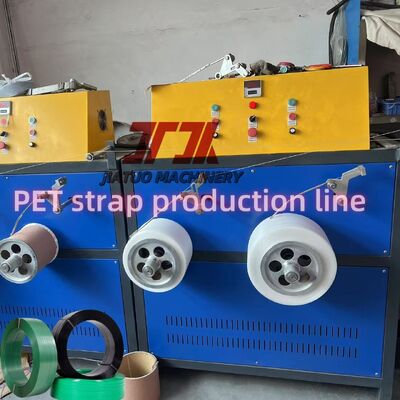

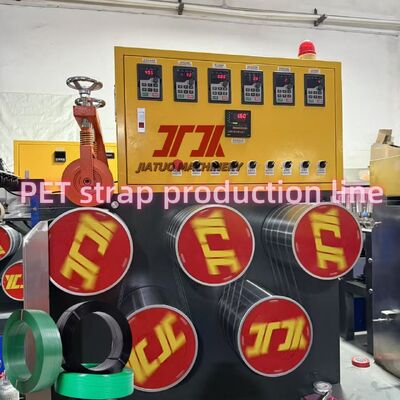

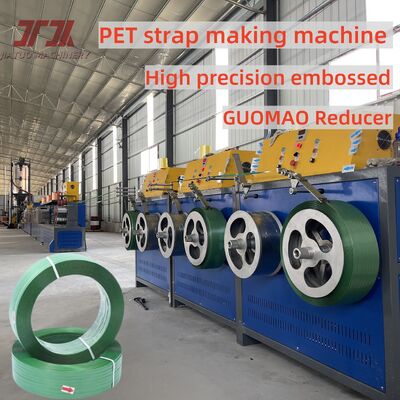

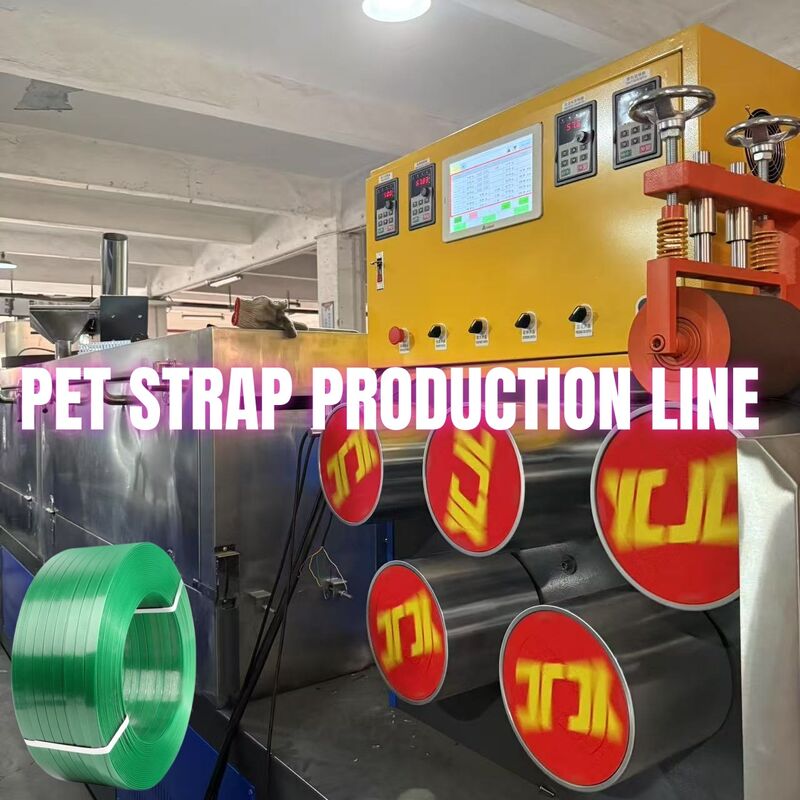

150m/min Line Speed PET Strapping Band Making Machine With Automatic Winder
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Parameters of PET strap production machine
| 1 | Materials | PET CRUSHED MATETIAL / bottle flakes material /virgin material |
| 2 | Product | PET strap (1 mould for 2straps) |
| 3 | Capacity | 200-225kg/H |
| 4 | Total install power | 100kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 9mm-32 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (50m) ×W (4m) ×H (8m) |
| 9 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches | Fotek |
| 13 | Motor power | GUGAO |
Part of JIATUO PET strap making machine
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-19mm; Thickness: 0.3-1.2mm;
* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
![]()
