Plastic machines 100% raw materials PP strapping tape production line PP strapping tape production equipment PP strapping tape for automatic screen changer

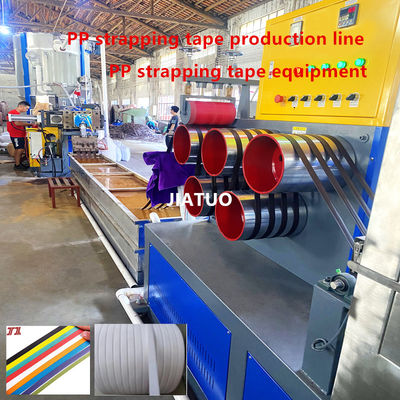

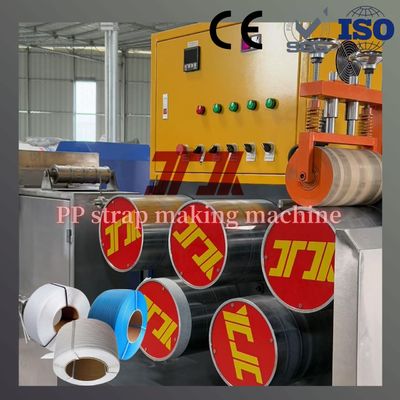

QUICK DETAIL ABOUT PP PACKING STRAP PRODUCTION LINE
The cooling system of the PP strapping production line adopts a circulating water source, a unique circulating cooling process, and multiple sets of shaping guide rails, which make the strapping cooling, shrinking and shaping more fully, the product more stable, and the size more accurate.
The oven part of the PP strapping production line adopts a hot air circulation method, with six heating tubes inside, and a unique oven hot air circulation method, which makes full use of heat energy to reduce power loss, and high-temperature resistant silicone seals to keep the oven super tight.
The whole machine of the PP strapping production line adopts a PLC control system, a PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate. PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate.
Width:5-19mm
Thickness: 0.4-1.2mm
Features :
High degree of automation: reduce manual intervention, improve efficiency, PLC control, easy debugging.
High production efficiency: continuous production, large output, 24-hour non-stop production.
Stable product quality: automated control ensures consistency of extrusion specifications, suitable for high-end strapping machines.
SPECIFICATION OF PP STRAPPING MACHINE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Extrusion----Extrusion capacity can be customized according to customer requirements, and can produce 2-12 strips.
Oven-----Energy-saving and environmentally friendly, constant temperature oven, high output, low power consumption.
Winding machine-----Can be equipped with semi-automatic winding machine & fully automatic winding machine according to customer requirements
ADVANTAGE OF PP EXTRUSION MAKING MACHINE
1. Special design of the screw extrusion technology can be choosing as per customer needs.
2. Can process 100% recycled PP/PET bottle flakes or pellets.
3. Plasticization and stable extrusion can with PLC automatic control for the full line.
4. According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5. Melt filter with two pistons with air venting design and back flushing.
6. Number of strap:1,2,4,6,Width: 5mm-19mm,Thickness: 0.4mm-1.2mm
7. Workers: 2 -3 workers per shift, 12 hours/shift.
FAQ ABOUT PLASTIC STRAPPING BAND MACHINE
Q. Are we manufactory of trade company?
A. We are factory has big workshop space and long history.
Q. What kind machines we produce?
A. Our factory produce plastic machines for PP & PET, PP strap making machine, PET extrusion production line...
Q. Can we produce the machine as customer costom order? A. Yes.
Q. Can customer send worker here to study the operation of the machine? A. Yes.
Q. Can customer send technician here to inspect the machine and loading?
A. We welcome you to visit us for this purpose.
Q. How long we need to produce the machines?
A. According to different machine model and configuation, we need different time, like 20 days to 2 months.
