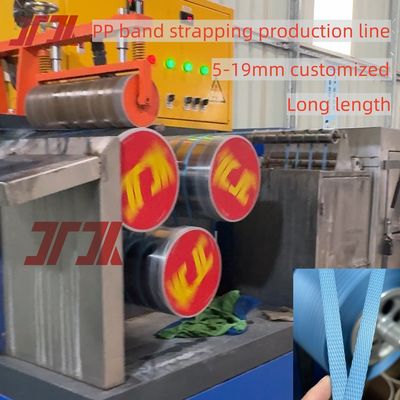

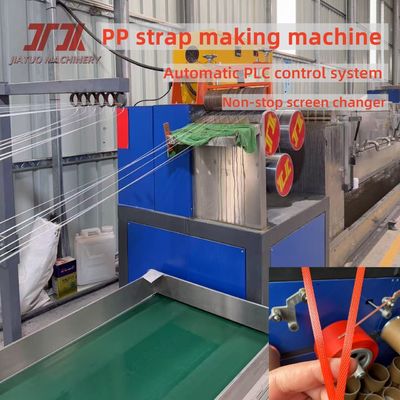

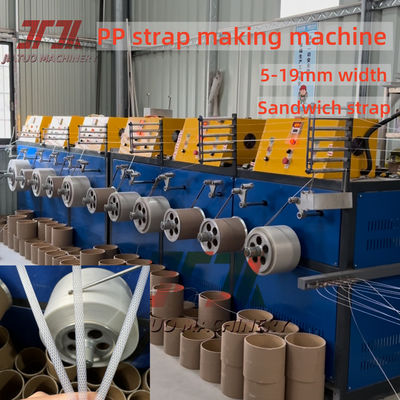

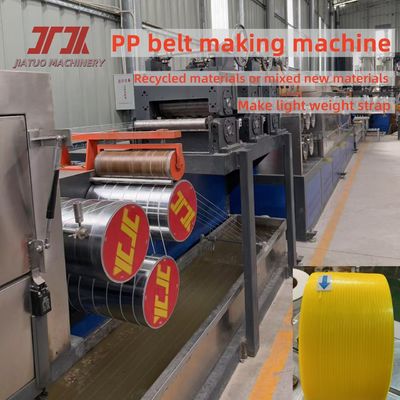

230-260Kg/H Capacity Plastic PP Strapping Band Extruder Production Machine With Precise Width And Thickness
Application of PP strapping
Recycling Industry
PP strapping compresses and bundles recyclables—cardboard, paper, plastic bottles, and aluminum cans—for efficient handling and transport.
Logistics & Transportation
Secures cargo in trucks, containers, and ships, preventing movement and ensuring safe transit.
Retail & Supermarkets
Bundles water bottles, canned goods, and retail products for display stability and easy transport.
Furniture Industry
Keeps furniture components (legs, frames, cushions) securely bundled for storage and shipping.
Process flow of PP packing belt production line
① Feeding →② mixture material→③ pre-drying →④ melting and measuring extrusion →⑤ belt embryo cooling and forming →⑥ oven pre-heating →⑦ primary stretching →⑧ secondary stretching →⑨ embossing → oven tempering and setting → cooling → finished product winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.
Specification of PP straps 4output making machine
| Item |
Product name |
Detailed parameters |
| 1 |
Materials |
PP polypropylene new material/recycled material |
| 2 |
Product |
PP strap |
| 3 |
Capacity |
230-260kg/h |
| 4 |
Total install power |
80kw, (Operating power 50-55%) |
| 5 |
Strap width |
5mm-19 mm |
| 6 |
Thickness |
0.4 mm-1.2 mm |
| 7 |
Manpower |
1-2person/shift |
| 8 |
Workshop required |
L (35m) ×W (2m) ×H (4m) |
| 9 |
Power source |
380V, 50Hz, 3Phase |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches+Thermostat |
Taiwan Fotek |
| 13 |
Motor power |
Gugao |
| 14 |
Solid state relay |
Taiwan Fotek |
| 15 |
Bearing |
FSB |
How can we adjust the precise width and thickness?
1. We will equip to adjustment mould, it can making 8-19mm width and 0.4-1.2mm without changer mould.(for 5mm will equip fixed mould)
2. adjust speed of haul off five rolls wheels in PLC control to reach the size you need.
3. our running speed can be 220-300m/Min, the maximum speed is 300m/min. Maximum production capacity utilized
FAQ
Q: What will you do for the order?
A: Our service likes below:
---------Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
------During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
------ After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can
