Product Description of  PET packing tape automatic winding machine:

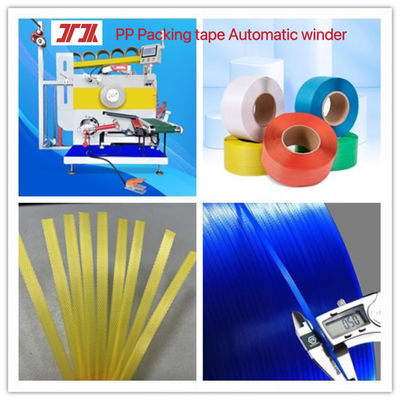

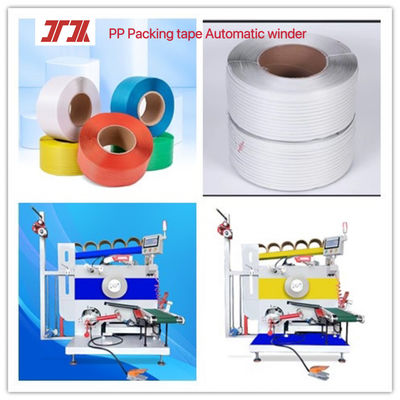

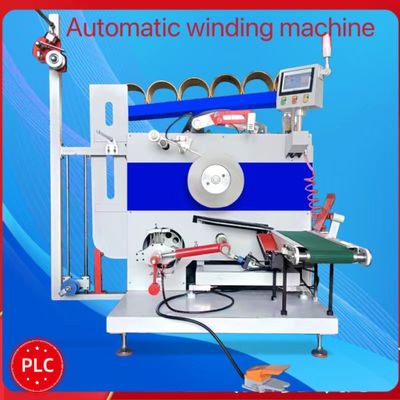

PET plastic steel belt automatic winding machine is an intelligent winding mechanical equipment, which is controlled by servo motor. The wires are arranged neatly and wound smoothly. It is suitable for PET packaging belt.
Working Conditions: Voltage 220V, Air Pressure 5--8kgf, Connect mark (Φ10) on machine with windpipe,
Main functions: 1) Use servo motor to arrange the wires, and reel in 9--32MM width strapping tape. Select the corresponding width of the tape through the touch screen for reeling, and there is no need to manually replace the transmission gear.
Mode: 2)  Both with and without paper core are available.
After winding, the machine stops automatically, replaces the paper tube, cuts the strapping tape, fixes the strapping tape head with a clip, and automatically winds the tape. The whole process is completed automatically. For winding without paper core: directly wind on the 6-part air expansion plate, and the inner circle automatically wraps a 150mm wide tape to fix the innermost layer of strapping tape so that it will not fall apart when unloading.
Servo motor: 3) The winding shaft uses a servo reduction motor. The speed of winding is adjusted by the angle position control of the tension arm. The tension can be adjusted by the pressure of the tension arm cylinder, so that strapping tapes of different gram weights or widths can be wound with appropriate tension, minimizing the bending deformation of the strapping tape after winding.
Paper tube:4)Ø406mm*152mm,Ø406mm*190mm,

Features of PET packing tape automatic winding machine:

• Product Name: PET Strapping Band Winding Machine
• Machine size: L1400*W1400*H1850mm
• Power Consumption: 1.8KW
• Name: Automatic Winding Machine
• Moment mode: YES
• Warranty: 12 Months
• Features:
  • PP STRAP WINDER DUAL-SERVO MOTOR
  • Automatically stop the winder
  • PP STRAP WINDER DUAL-SERVO MOTOR
  •    PET plastic steel belt automatic winding machine


Technical Parameters of PET packing tape automatic winding machine:

Applications of PET packing tape automatic winding machine:

Touch screen: operation and display of various functions in the touch screen panel (winding length, weight, start, stop, interface switch, bandwidth selection, paper core height selection, etc.)

Weight measurement, meter measurement,One-click button spring air expansion reel, 9-32MM bandwidth arrangement automatic calculation, side roller fitting guide belt winding, winding end face flat, uniform spacing.

1.This PP automatic winding machine will pass strict inspection before leaving the factory, and field winding test.
2. This PP automatic winding machine will be packaged with PE soft film before leaving the factory, and then put into the wooden box for fixed packaging to ensure safe delivery.
3. This PET automatic winding machine will be delivered safely by sea transportation.
