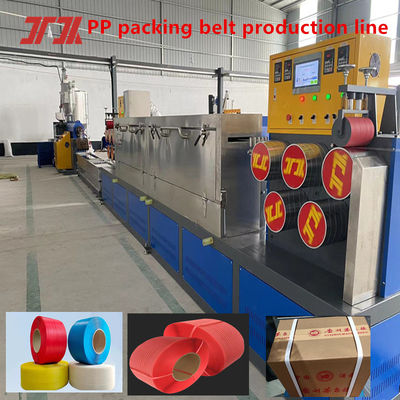

Single Screw Fully Automatic 280-300kg/H Plastic PP Four Strap Extrusion Production Line With ISO

Single screw Fully Automatic 280-300kg/h Plastic PP Four Strap Extrusion Production Line with ISO

Technical Parameters of PP belt production line​

Machine name	pp strap production line
Place of origin	Shenzhen, China
Certification	ISO9001-2000; CE
Raw material	pp granules / 100% recycled material
Product width	5-19mm
Product thickness	0.4-1.2mm
manpower	2persons/shift
Machine size	28-40*2*4M
Extruder	JT-PP90	JT-110	JT-125
Strap QTY	2	4	6
Max output	120-150kg/h	250-300kg/h	350-380kg/h

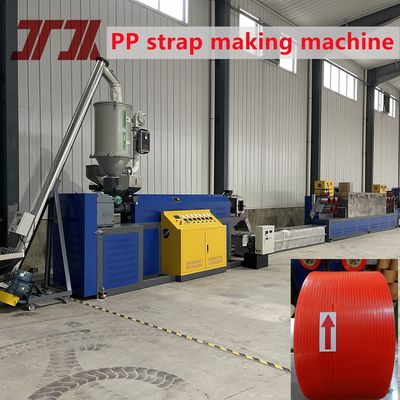

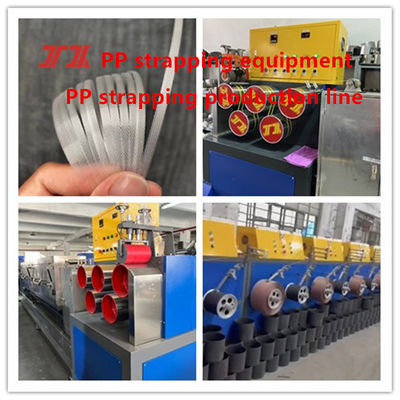

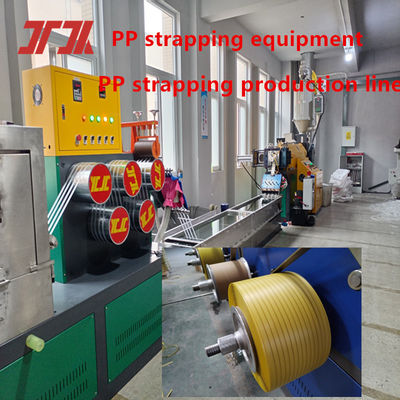

Main machines of PP belt production line

Screw extruder--Die head and mould(four strips)---Cooling water tank---First haul-off---Thermal oven---Second haul-off---Embosser---calibrating---haul off--final winder

Die head and mould: It adopts high quality mould steel which features high speed production, even extruding, low pressure on the die head, high precision, long life span, etc.

One mould can produce two pieces, high efficiency

Cooling water tank: stainless steel cooling water tank controls the crystallization degree to the plastic, and guarantees the extension ratio of belt blank.

Application of PP strapping

• Logistics & Warehousing: Pallet and cargo strapping for secure transport and storage
• Food & Beverage: Safe packaging for drink and food products
• Building Materials: Heavy-duty strapping for pipes, tiles and lumber
• Paper & Printing: Stable bundling for paper rolls and printed goods

FAQ of JIATUO PP STRAP MAKING MACHINE

1.Are  you  the manufacturer?

Yes. we are the manufacturer in China. Specilized in PP PET strap making machine and PP PET strapping for nearly 30years experience .

2. How many length?

It is depend on the type of machine. for example: 2 straps output machine, the size is L30m*W2m*H4m.

3. What trade iteam can you accept?

Normally is EXW. we can also FOB, CIF,DDP.etc.
