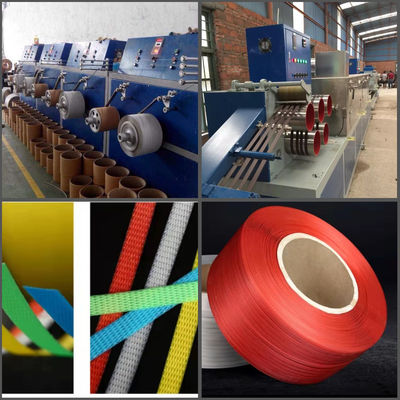

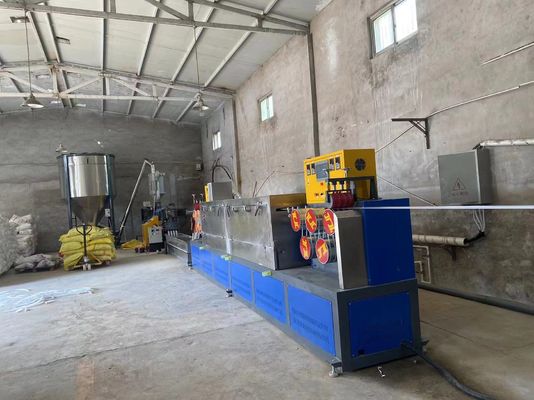

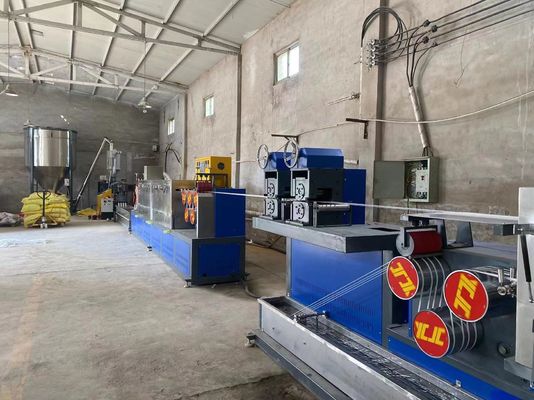

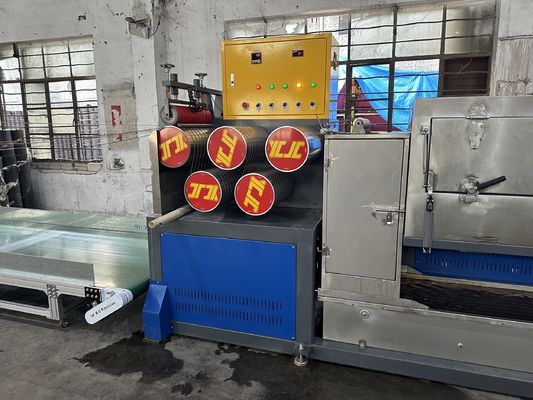

PP Pet Strap Machine PP Pet Strap Extruder Machine Pet Strap Making Machine
Quick Detail Of PP Strap Making Machine
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
Specification Of PP Strap Production Line
| Model No. |
PP-2 |
PP-3 |
PP-4 |
PP-6 |
PP-8 |
PP-2-2 |
PP-2-4 |
| Production material |
PP Recycled /
raw material |
PP Recycled /
raw material |
PP Recycled /
raw material |
PP Recycled |
PP Recycled |
PP Recycled |
PP Recycled |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
4 |
6 |
Outgoing bandwidth
(mm) |
5~19 |
5~19 |
5~19 |
9~19 |
9~19 |
9~19 |
9~19 |
Outlet thickness
(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
Extrusion capacity
(kg/h) |
120 |
180 |
240 |
360 |
480 |
120 |
240 |
Maximum linear speed
(m/min) |
≥250 |
≥250 |
≥250 |
≥250 |
≥250 |
≥250 |
≥250 |
| PLC control system |
PLC control |
PLC control |
PLC control |
PLC control |
PLC control |
PLC control |
PLC control |
| Screw model |
90 |
100 |
110 |
125 |
135 |
90/65 |
110/75 |
| Reducer model |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Automatic dryer hopper |
100KG |
100KG |
150KG |
200KG |
250KG |
100/100KG |
100/150KG |
| Screen changer |
Manual / Auto |
Manual / Auto |
Manual / Auto |
Manual / Auto |
Manual / Auto |
Manual / Auto |
Manual / Auto |
| Production capacity/24H |
2.8 tons |
4.3 tons |
5.7 tons |
8.6 tons |
11.5 tons |
2.8 tons |
5.7 tons |
Features Of Plastic PP Extrusion Line
Shenzhen Jiatuo Plastic Machinery Co., LTD. PP packaging belt production line can use recycled material or mixed new material production packaging belt, can also be appropriate to add other raw materials according to customer conditions, improve product profits, breakthrough market competitiveness.
All kinds of packing belts produced by the company can be used for all kinds of automatic unmanned baling machines at home and abroad. High precision embossing wheel, clear embossing, more color, more beautiful.
High precision and high quality screw, unique PLC control system, with large extrusion capacity, good plasticizing, high hardness, wear resistance and other characteristics.
Foreign CNC machine tool cutting, high precision die parts, so that the product quality stability, thickness error range is less than the "plastic packaging belt acceptance standard".
(1) Safety and environmental protection:safe for use, not easy to hurt, according with EU environmental directives, for example ROSH.
(2) Low cost:It is the most cost-effective in new environmentally friendly packaging materials products.
(3) Easy to use:Suitable for fully automatic balers, manual balers and other packaging machinery quickly and convenient to use.
(4) Excellent toughness: Between -50 ~ 100 ºC temperature, it is fully capable of normal use, and maintains excellent flexibility.
(5) Look beautiful: Finish bundled items look beautiful, does not pollute the items, never rust.
(6) Very good strength: Can provide up to 470 MPA tensile strength to protect the safety of Strapping.
FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
Advantages Of PP Extursion Making Machine
1.Special design of the screw extrusion technology can be choosing as per customer needs.
2.Can process 100% recycled PP/PET bottle flakes or pellets.
3.Plasticization and stable extrusion can with PLC automatic control for the full line.
4.According different requirements, changing materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5.Melt filter with two pistons with air venting design and back flushing.
6.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
7.Workers: 2 -3 workers per shift, 12 hours/shift.
