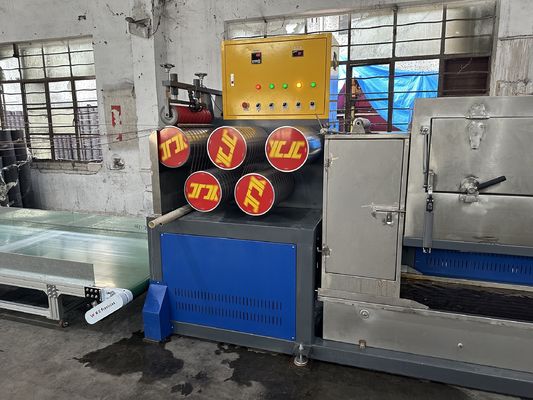

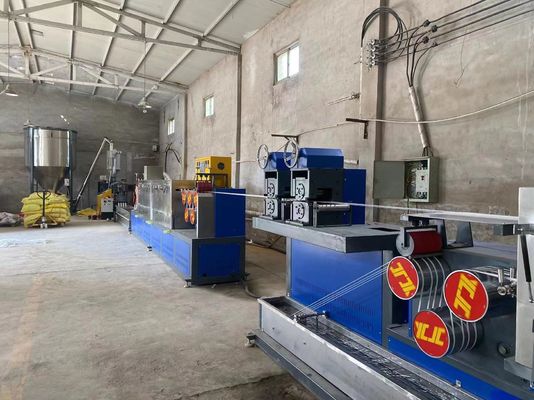

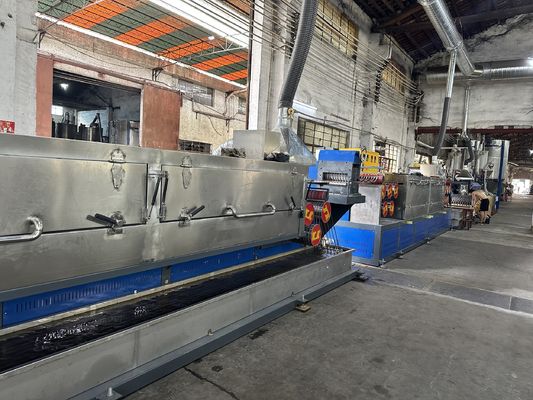

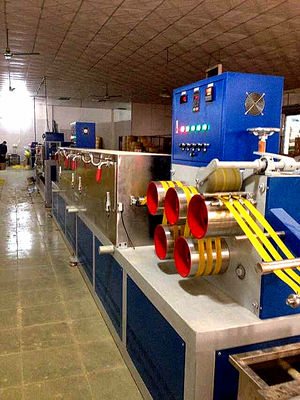

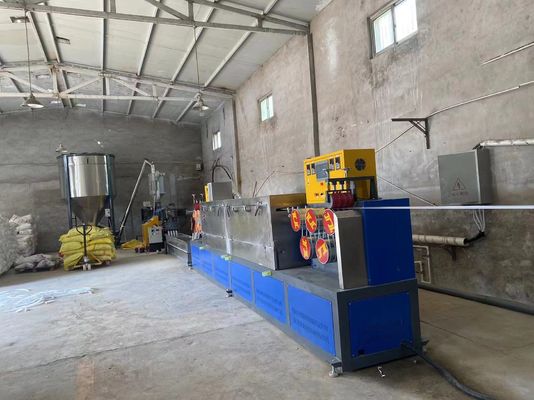

Plastic machinery PP strapping tape production line PP plastic strapping tape equipment for 200-300m/min line speed
Quick Detail Of PP Strap Making Machine
PP plastic strapping machine is a high-end equipment used to produce PP strapping for a wide range of uses.
Raw materials------100% polypropylene new material or recycled material
Control method------ PLC control system, which can be set to different languages.
Motor------The equipment is driven by GUGAO motor, which has stable and reliable performance and low failure rate.
Line speed------ 200-300 m/min
Specification Of PP Strap Production Line
| Output |
150kg/hr |
300kg/hr |
500kg/hr |
800kg/hr |
| Motor Power |
55KW |
110KW |
160KW |
250KW |
| Installation Power |
280KW |
445KW |
635KW |
900KW |
| Speed |
120m/min |
120m/min |
120m/min |
120m/min |
| Overall Size of Machine |
32*4*5m |
46*5*5.5m |
60*6*6m |
60*6*6m |
| Width of Strap |
9-19mm |
9-32mm |
9-32mm |
9-32mm |
| Width Tolerance |
±0.45mm (int. ±0.76mm) |
| Thickness of Strap |
0.55~ 1.27mm |
0.55~1.27mm |
0.55~1.27mm |
0.55~1.27mm |
| Thickness Tolerance |
±0.05mm (int. ±0.06mm) |
| Elongation Rate of Strap |
10~15% |
| Breaking Strength of Strap |
< 50kg/mm² |
Features Of Plastic PP Extrusion Line(1) Safety and environmental protection:safe for use, not easy to hurt, according with EU environmental directives, for example ROSH.
(2) Low cost:It is the most cost-effective in new environmentally friendly packaging materials products.
(3) Easy to use:Suitable for fully automatic balers, manual balers and other packaging machinery quickly and convenient to use.
(4) Excellent toughness: Between -50 ~ 100 ºC temperature, it is fully capable of normal use, and maintains excellent flexibility.
(5) Look beautiful: Finish bundled items look beautiful, does not pollute the items, never rust.
(6) Very good strength: Can provide up to 470 MPA tensile strength to protect the safety of Strapping.
FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
