Ürün ayrıntıları:
|
| Plastik İşlenmiş: | PET | Vida çapı (mm): | 125mm |
|---|---|---|---|
| Üretim kapasitesi: | 400-450kgs/saat | Garanti: | 1 yıl |
| Ekstrüde edilmiş kayış sayısı: | 4 | Uygulama kapsamı: | Tuğla bahçesi, metal, çelik, alüminyum, bira fabrikası |
| Ekran Filtresi: | çift silindirli / tek silindirli | Kalınlık aralığı: | 0,4-1,2 mm |
| Genişlik aralığı: | 9-32mm | Uygulanabilir hammaddeler: | şişe pul malzemesi, %100 kırık malzeme |
| Kontrol sistemleri: | PLC Çin/İngilizce Kontrol Sistemi | Isıtıcı gücü: | 220V, 50HZ, 6 KW/ SET |
| Motor: | SIMENS | İnvertör: | INVT |
| Ön kurutma kulesi kapasitesi: | 5000L | Vida Tasarımı: | Tek vidalı |
| Vurgulamak: | High Tensile PET Strap Extrusion Machine,Dehumidification Filter PET Strap Extrusion Machine,Horizontal Mixer PET Strap Production Line |
||

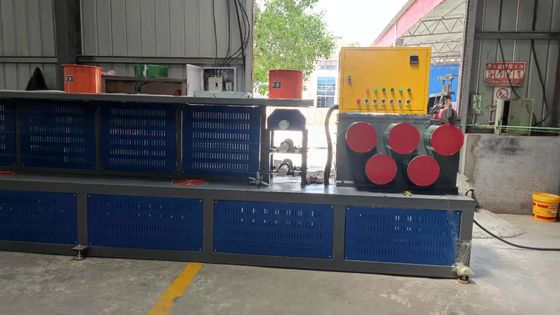

High Tensile PET Strap Extrusion Machine Dehumidification Filter
High-Tensile PET Packing Strap Extrusion Line Dehumidification Filter Horizontal Mixer
Product Description
PET packing tap making machine
PET has good rigidity, high temperature resistance, no rust, and its specific gravity is 1/5 of steel. It is mainly suitable for packaging and packaging of various enterprises. Its characteristics: high tensile resistance and small extension force. Impact resistance and hard to break, low price, good flexibility, convenient operation, safe and reliable, it is widely used in paper making, wood products, textiles, cotton and fiber, non-ferrous metals, canned products, chemical products, metallurgy, power cables, aluminum profiles And other mechanical and electrical products and all kinds of goods pallet bundling. The product is easy to use and can be connected by ordinary steel ports. It is also suitable for all kinds of manual and desktop balers and large-scale enterprise automatic balers, and hot-melt connections.
![]()
Equipment composition
PET packing strap band production line
|
Item |
Name |
Quantity |
|
1 |
Dehumidification and drying system |
1 set |
|
2 |
Oil and dust filter |
1 set |
|
3 |
Horizontal mixer(5000L) |
1 set |
|
4 |
Pre-drying tower(5000L) |
1 set |
|
5 |
Screw Feeder |
3 set |
|
6 |
Barrel(5000L) |
1 set |
|
7 |
¢125mm Extruding Machine |
1 set |
|
8 |
Melt pump |
1 set |
|
9 |
Single cylinder filter |
1 set |
|
10 |
PET Mould output 4straps |
1 set |
|
11 |
Cooling water tank |
1 set |
|
12 |
Stretching oven |
1 set |
|
13 |
Five roller gearbox |
3 set |
|
14 |
PLC electrical control system |
1 set |
|
15 |
Forming oven |
1 set |
|
16 |
Double disk winder |
4 set |
Product Parameters
PET packing strap band production line
| 1 | Materials | PET raw material or 100% PET bottle flakes recycled |
| 2 | Product | PET output 4straps making machine |
| 3 | Capacity | 400-450kg/h |
| 4 | Total install power | 300kw, (actual power consumption is 150-160%) |
| 5 | Strap width | 9 mm-32 mm |
| 6 | Thickness | 0.6 mm-1.2 mm |
| 7 | Manpower | 3person/shift |
| 8 | Workshop required | L (65m) ×W (2m) ×H (7m) |
| 9 | Cooling water | ≤20℃,≥0.3Mpa, 5-8Ton/hr |
| 10 | Compressed air | 0.5-0.8Mpa |
| 11 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 12 | Electric components | Schneider |
| 13 | Inverter | INVT |
| 14 | Switches | Taiwan Yangming |
| 15 | Motor power | Simens |
| 16 | Bearing | TR |
![]()
![]()
Application

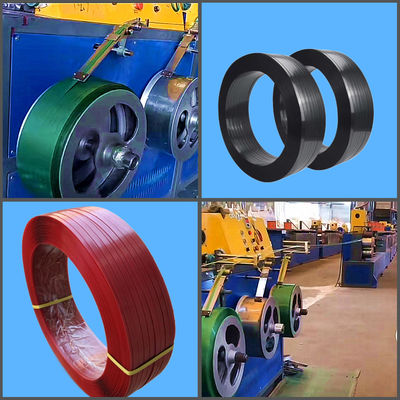

PET strap band making machine
known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline,have been widely used in the steel industry,chemical fiber industry,aluminum ingots,paper,brick kiln industry,screw industry,tobacco industry,electronics,textiles and wood,etc;is replaced by a new high-strength steel strapping,is the world's most widely used for steel products.
FAQ
Q: What about the output of PET strapping band extrusion line?
A: 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
Q: What about the size of strap that the PET strap machine can make?
A:Width: 9-32mm; Thickness: 0.4-1.2mm;
Q: What about the maximum tensile strength of the strap?
A: 12000N (32*1.2mm);
Q: What about the usage of PET strap?
A: Packing cotton, aluminum, wood, brick, boxes;
Q:Will the strap be used for automatic strapping tool or manual tool?
A: Both.
![]()
