Ürün ayrıntıları:
|
| Çekirdek Bileşenler: | Motor, PLC, vites kutusu, vida | Otomatik Sınıflandırma: | Tam otomatik/yarı otomatik |
|---|---|---|---|
| Makine Test Raporu: | Tedarik edilen | Vida Stili: | Tek vida ekstrüder |
| Sıcaklık Kontrolü: | Tayvan Fotek | Motor: | SIMENS |
| Kontrol sistemleri: | PLC Çin/İngilizce Kontrol Sistemi | Ekstrüde edilmiş kayış sayısı: | 2/3/4/6 |
| Üretim kapasitesi: | 180-620KGS | Garanti: | 1 Yıl |
| Vida çapı (mm): | 90/100/125/150mm | Kayış genişliği: | 9-32mm |
| Kalınlık: | 0,4-1,2 mm | Uygulama kapsamı: | Tuğla bahçesi, metal, çelik, alüminyum, bira fabrikası |
| Ekran Filtresi: | iki yönlü silindir / tek silindirli | Vida Malzemesi: | 38CrMoALA |
| Vurgulamak: | 1.2mm PET Strap Extruder,SIMENS Motor PET Strap Extruder,SIMENS Motor PET Strap Making Machine |
||
China Supplier Wholesale PET Strap Extruder Making Machine 0.4-1.2mm
Description of PET belt making machine

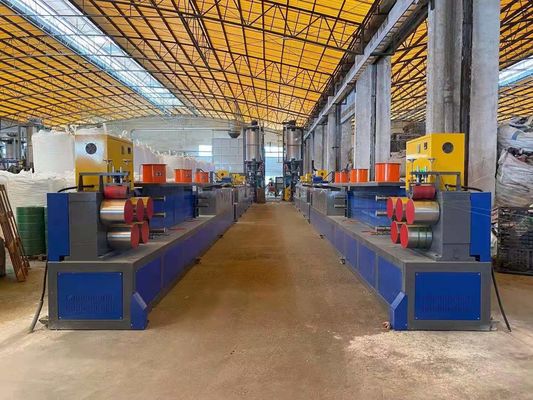

PET strap production machine, which has broken through the traditional craft route, takes the 100% bottle slice for raw materials without any other complement and crystallization, adopts the advance technology to produce all kinds of polyester straps directly in a economical cost.
Performance advantages of PET belt production line
![]()
Main technical parameters of PET strap production machine
| Model | JTPET-90 | JTPET-100 | JTPET-125 | JTPET-150 |
| Number of straps | 2 | 3 | 4 | 6 |
| Width(mm) | 9-32mm | 9-32mm | 9-32mm | 9-32mm |
| Thickness(mm) | 0.6-1.2mm | 0.4-1.2mm | 0.4-1.2mm | 0.4-1.2mm |
| Screen changer | single cylinder/ two-way cylinder | |||
| Reducer model | 200 | 250 | 280 | 315 |
| Production capacity | 180-230kg/H | 250-280kg/H | 380-430kg/H | 580-630kg/H |
Features of PET packing strap production line
![]()
![]()
![]()
