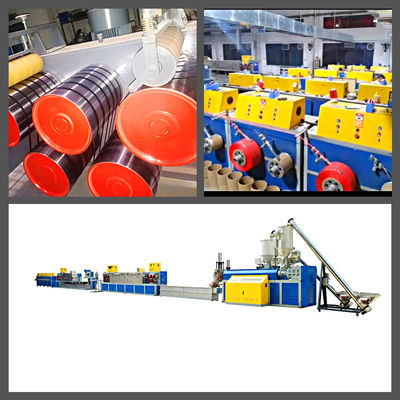

100KW 1.2mm PP Strap Band Extrusion Line

Automatic PP Packing Strap Band Belt Plastic Extruder Extrusion Making Machine Production Line

PRODUCT DESCRIPTION

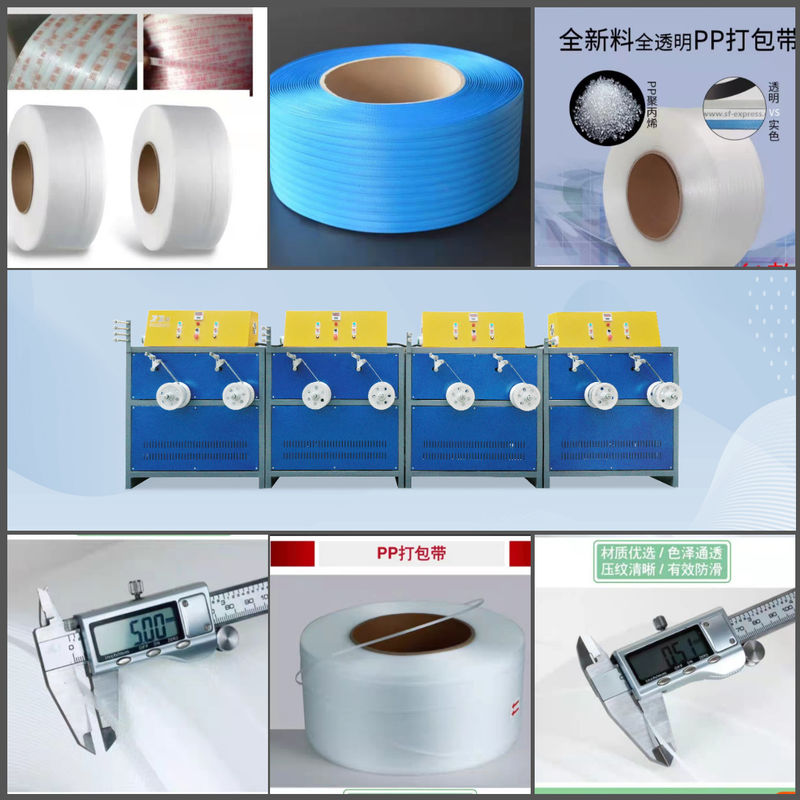

Polypropylene Strapping

Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to
medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in
unrecoverable dead stretch and inability to return to its original length

Plastic Strapping

Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths,
styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of
plastic strap to use.

FEATURES

Feature 1:
• Raw material process and extrusion system.
• High performance crystallizing and drying system.
• Production can use 100% recycled material to obtain a high add value strapping band.
• Special designed PET screw, select of single or twin screw extruder.

Feature 2:
• Continuous back-flush screen changer operating technology (Europe technology).
• 100% full automatic self-cleaning screen changer.
• Double column 4 screen cavities.
• PLC control, change screen without production interrupted, not influence the production quality.

Feature 3:
• Special designed hot air stretching oven.
• Configured with heating unit and automatic temperature control system.
• High performance heat insulating layer.
• Better on strip stretching and heating, rapid heating, complete strip orientation stretching.

Feature 4:
• Embossing machine, Hydraulic control.
• Customization designed embossing roll pattern available.
• Configured with synchronous control system, adjust embossing roll vertical position and embossing strength accurately.

Feature 5:
• Heating oven for sizing
• Special designed technology, make sure the strip forming rapidly
• Prevent the strip from un-orientation after orientation, eliminate internal stress, make sure the quality and size accuracy of strip.

Feature 6:
• Strapping accumulator unit.
• Strap length and the winding tension can be controlled according to strap wind speed.
• Two times completely cooling strapping.
• Reduce strapping winding camber.

Feature 7:
• Servo control winder (Single position and double position optional).
• PLC control system, automatically adjust winding tension.
• Winding range from 5mm to 32mm.
• Servo motor controls winder displacement width and distance.
• Reduce the strap bending, make sure the strap is fit for automatic packaging equipment.
